SLR: Model evaluation

Author

Prof. Maria Tackett

Published

January 15, 2026

Announcements

  • No office hours Mon, Jan 20 - Martin Luther King, Jr. Holiday
    • See Canvas for full office hours schedule

Questions from last class?

Topics

  • Predict the response given a value of the predictor
  • Use R to conduct exploratory data analysis and fit a model
  • Evaluate models using RMSE and \(R^2\)
  • Use analysis of variance to partition variability in the response variable

Computing set up

# load packages
library(tidyverse)   # for data wrangling and visualization
library(tidymodels)  # for modeling (includes broom, yardstick, and other packages)
library(knitr)       # for pretty tables
library(patchwork)   # arrange plots

# set default theme for ggplot2
ggplot2::theme_set(ggplot2::theme_bw())

Data: Life expectancy in 140 countries

The data set comes from Zarulli et al. (2021) who analyze the effects of a country’s healthcare expenditures and other factors on the country’s life expectancy. The data are originally from the Human Development Database and World Health Organization.

The data are avaialable in life-expectancy-data.csv. There are 140 countries (observations) in the data set.


Goal: Use the income inequality in a country to understand variability in the life expectancy.

Click here for the original research paper.

Variables

  • life_exp: The average number of years that a newborn could expect to live, if he or she were to pass through life exposed to the sex- and age-specific death rates prevailing at the time of his or her birth, for a specific year, in a given country, territory, or geographic income_inequality. ( from the World Health Organization)

  • income_inequality: Measure of the deviation of the distribution of income among individuals or households within a country from a perfectly equal distribution. A value of 0 represents absolute equality, a value of 100 absolute inequality (based on Gini coefficient). (from Zarulli et al. (2021))

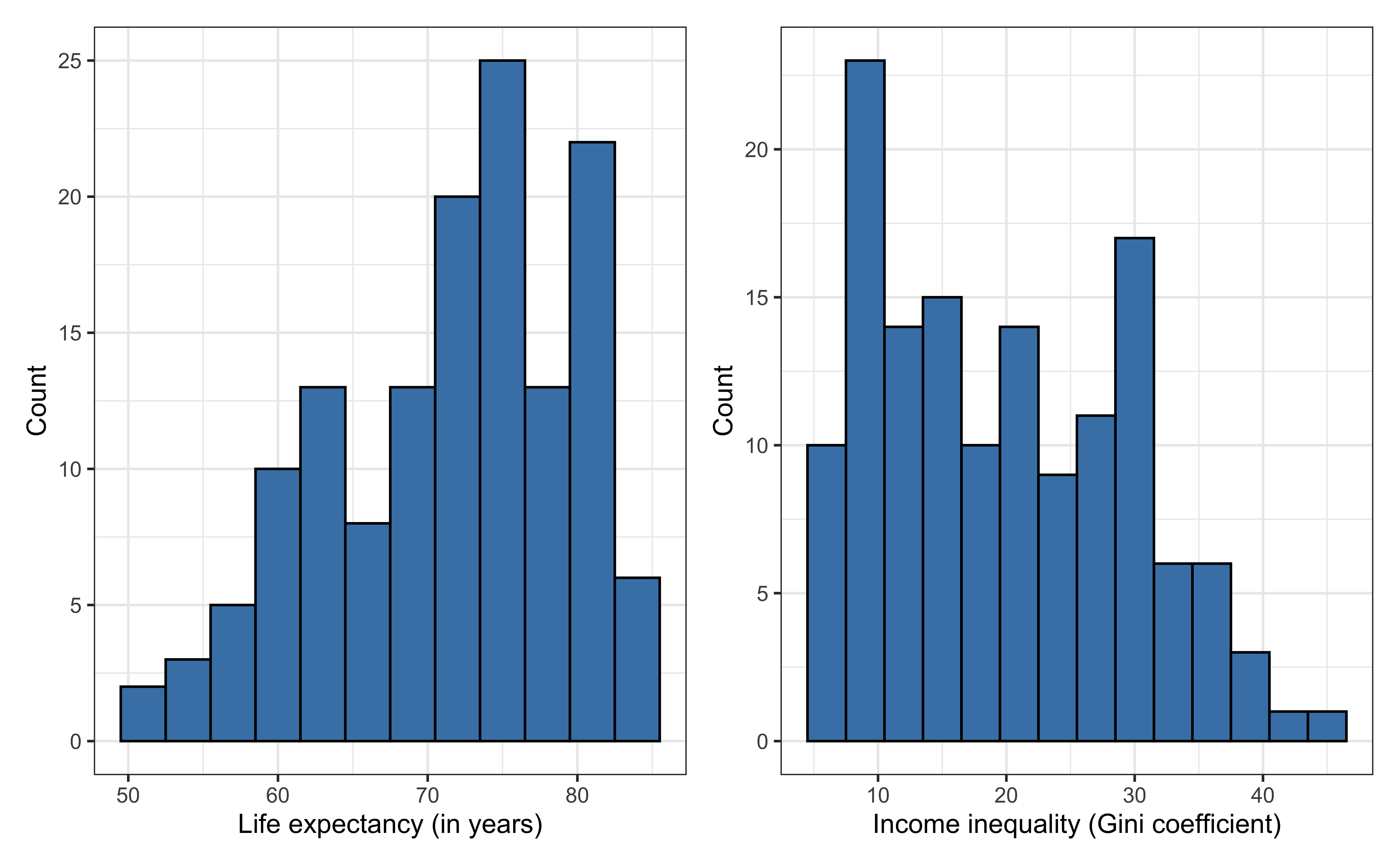

Univariate exploratory data analysis

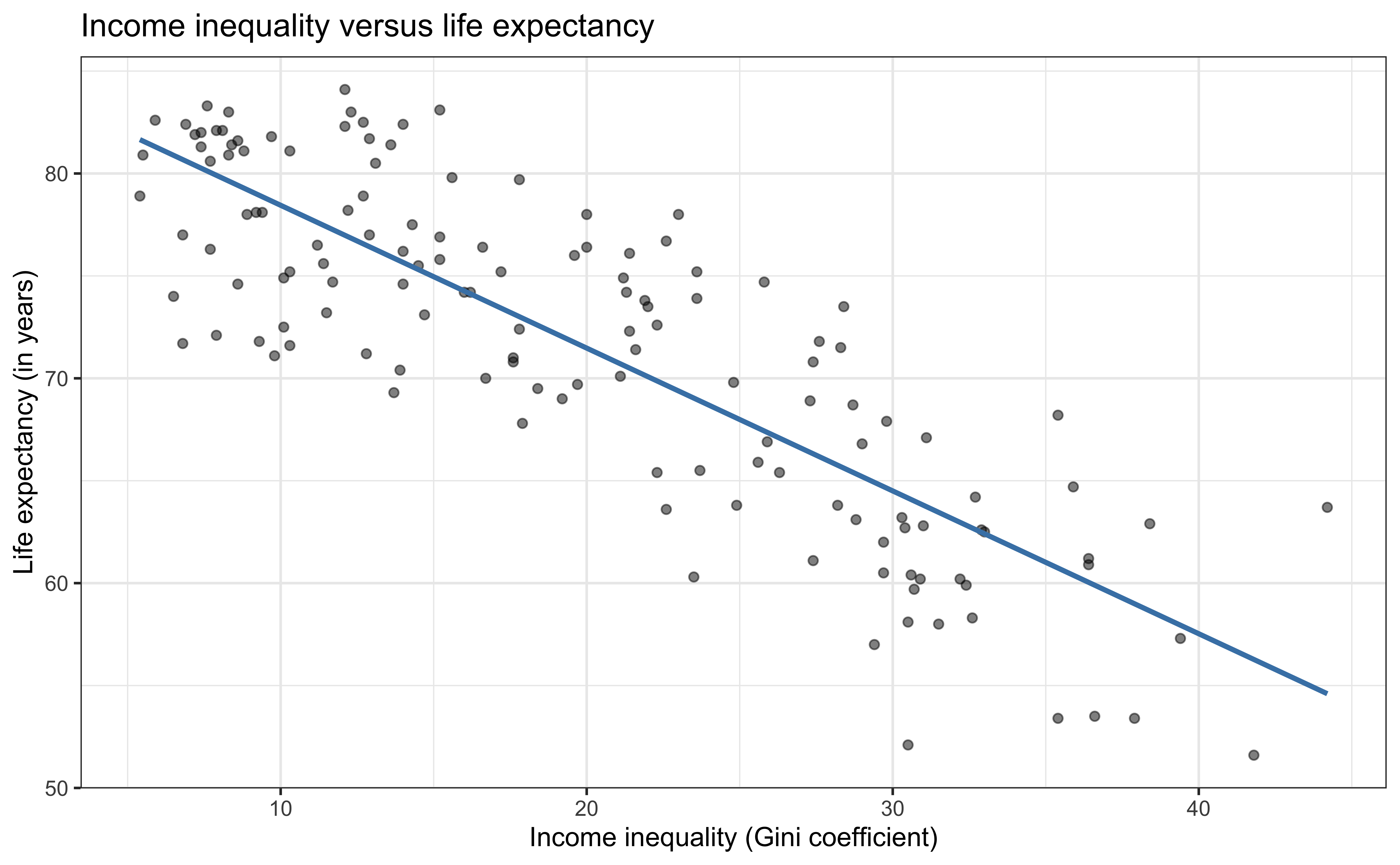

Bivariate exploratory data analysis

Application exercise

📋 sta221-sp26.github.io/ae/ae-01-model-evaluation.html

Complete Part 1.

Clone repo + start new RStudio project

  • Go to the course organization. Click on the repo with the prefix ae-01. It contains the starter documents you need to complete the AE.

  • Click on the green CODE button, select Use SSH (this might already be selected by default, and if it is, you’ll see the text Clone with SSH). Click on the clipboard icon to copy the repo URL.

  • In RStudio, go to File → New Project → Version Control → Git.

  • Copy and paste the URL of your assignment repo into the dialog box Repository URL.

  • Click Create Project, and the files from your GitHub repo will be displayed in the Files pane in RStudio.

  • Click ae-01.qmd to open the template Quarto file. This is where you will write up your code and narrative for the AE.

Model evaluation

We fit a model but is it any good?

Two statistics

  • Root mean square error, RMSE: A measure of the average error (average difference between observed and predicted values of the outcome)

  • R-squared, \(R^2\) : Percentage of variability in the outcome explained by the regression model (in the context of SLR, the predictor)

. . .

What indicates a good model fit? Higher or lower RMSE? Higher or lower \(R^2\)?

RMSE

\[ RMSE = \sqrt{\frac{\sum_{i=1}^n(y_i - \hat{y}_i)^2}{n}} = \sqrt{\frac{\sum_{i=1}^ne_i^2}{n}} \]

. . .

  • Ranges between 0 (perfect predictor) and infinity (terrible predictor)

  • Same units as the response variable

  • The value of RMSE is more useful for comparing across models than evaluating a single model

ANOVA and \(R^2\)

ANOVA

Analysis of Variance (ANOVA): Technique to partition variability in \(Y\) by the sources of variability

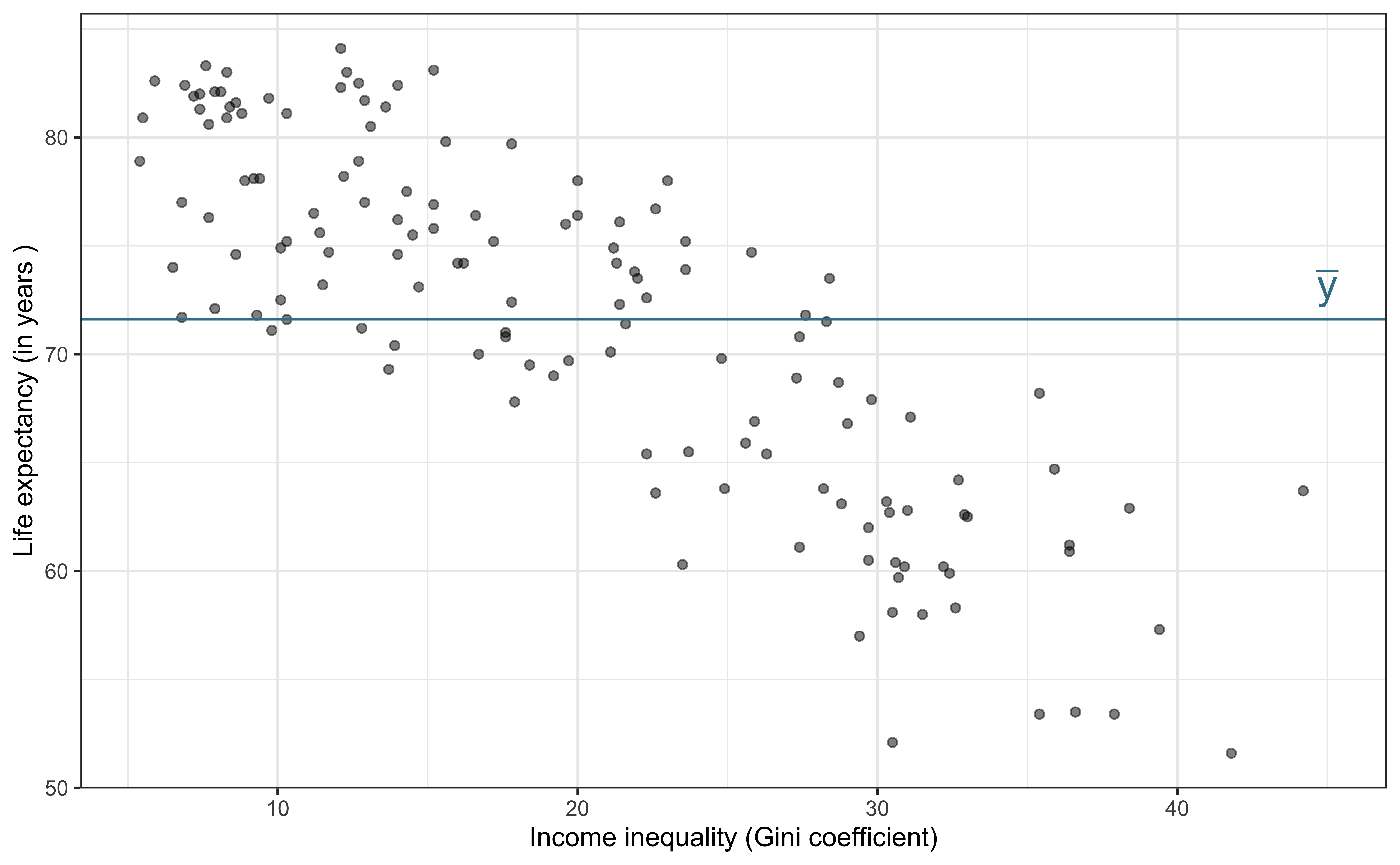

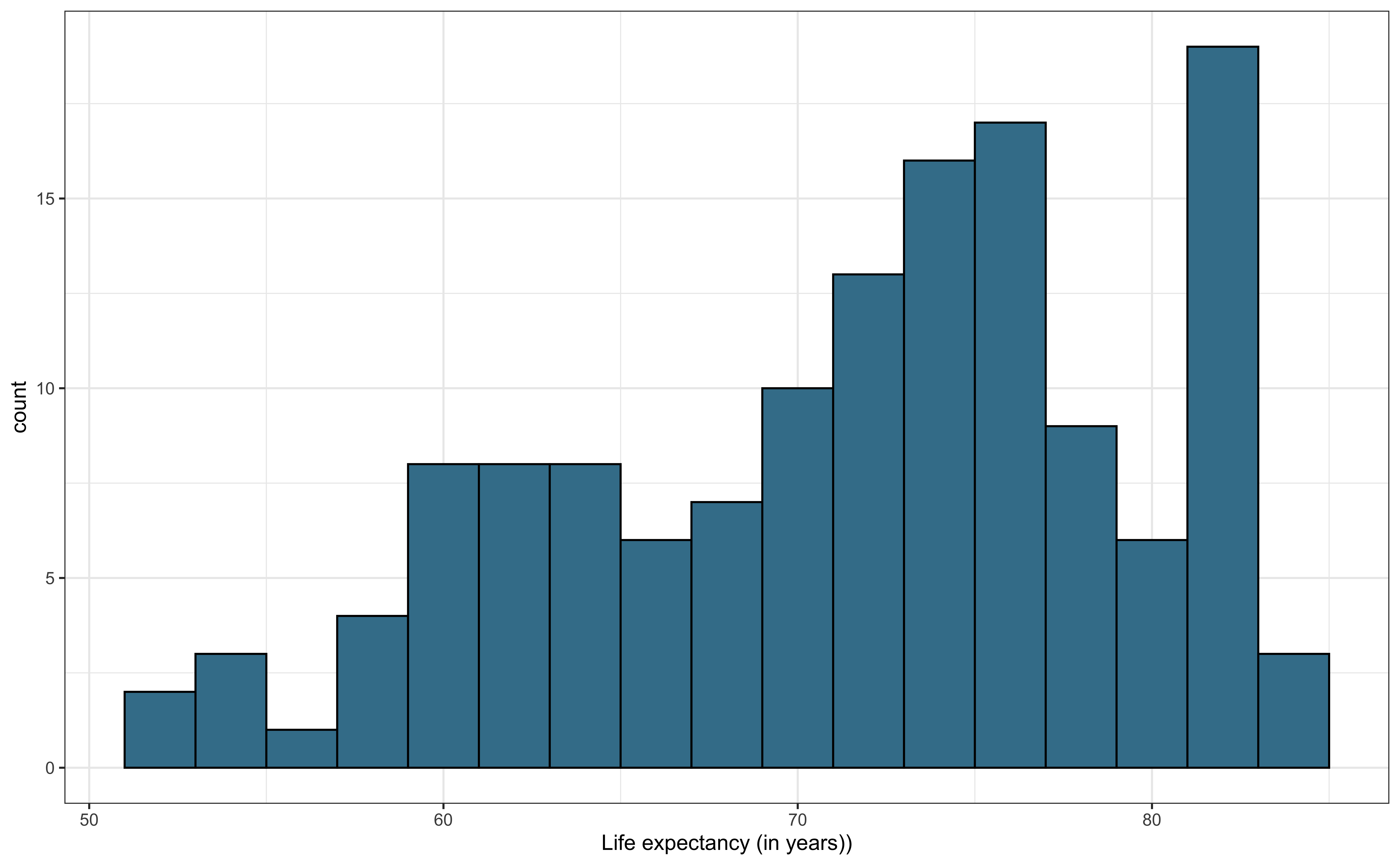

Total variability (Response)

Min Median Max Mean Std.Dev
51.6 72.85 84.1 71.614 8.075

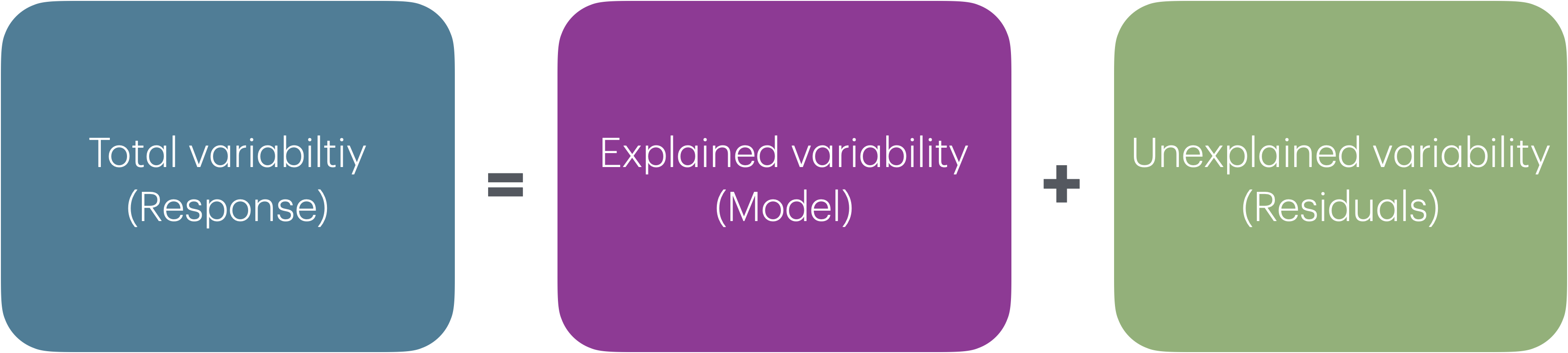

Partition sources of variability in life_exp

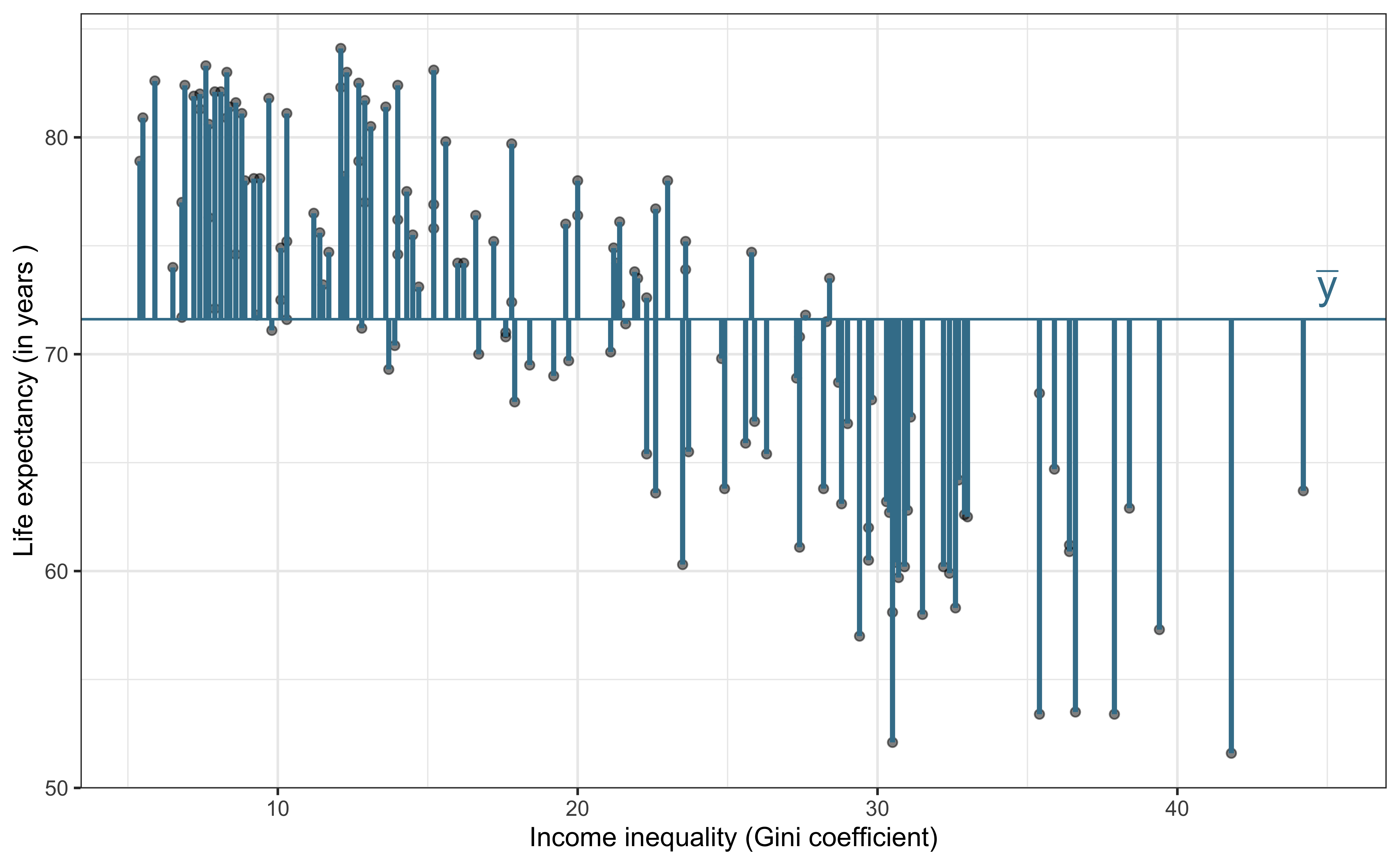

Total variability (Response)

\[\text{Sum of Squares Total (SST)} = \sum_{i=1}^n(y_i - \bar{y})^2 = (n-1)s_y^2\]

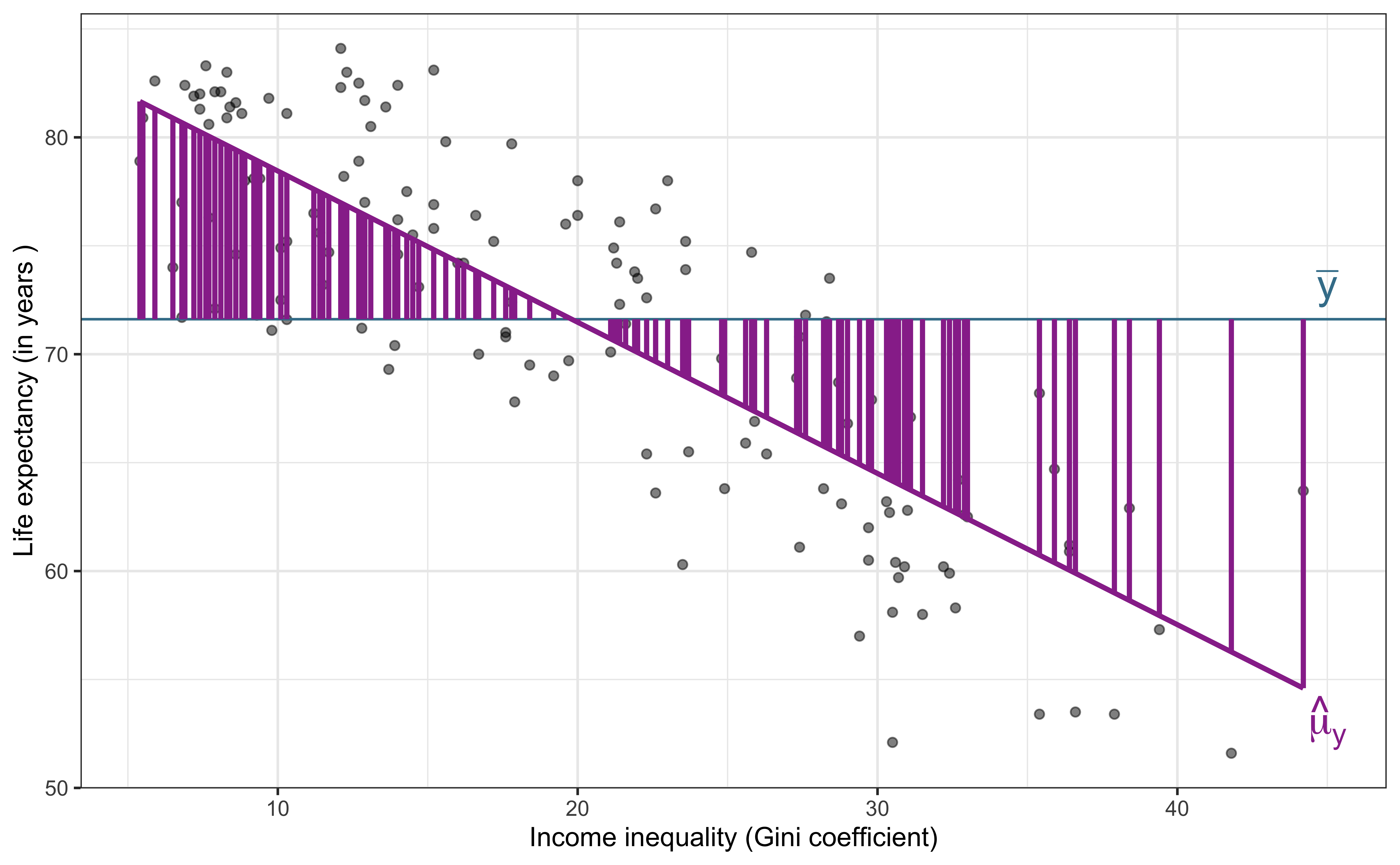

Explained variability (Model)

\[\text{Sum of Squares Model (SSM)} = \sum_{i = 1}^{n}(\hat{y}_i - \bar{y})^2\]

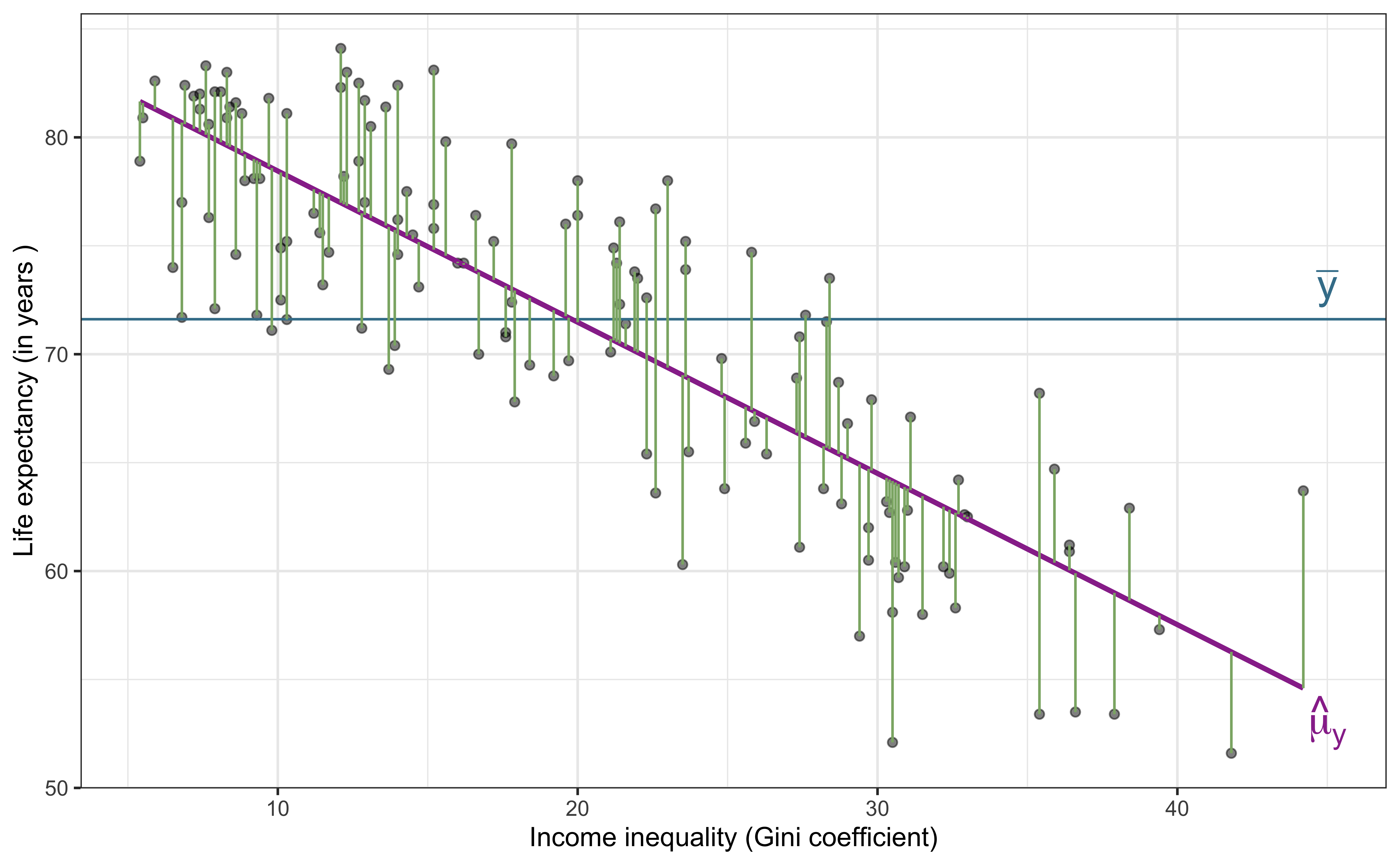

Unexplained variability (Residuals)

\[\text{Sum of Squares Residuals (SSR)} = \sum_{i = 1}^{n}(y_i - \hat{y}_i)^2\]

Sum of Squares


\[ \begin{aligned} \color{#407E99}{SST} \hspace{5mm}&= &\color{#993399}{SSM} &\hspace{5mm} + &\color{#8BB174}{SSR} \\[10pt] \color{#407E99}{\sum_{i=1}^n(y_i - \bar{y})^2} \hspace{5mm}&= &\color{#993399}{\sum_{i = 1}^{n}(\hat{y}_i - \bar{y})^2} &\hspace{5mm}+ &\color{#8BB174}{\sum_{i = 1}^{n}(y_i - \hat{y}_i)^2} \end{aligned} \]

Click here to see why this equality holds.

\(R^2\)

The coefficient of determination \(R^2\) is the proportion of variation in the response, \(Y\), that is explained by the regression model


\[\large{R^2 = \frac{SSM}{SST} = 1 - \frac{SSR}{SST}}\]


What is the range of \(R^2\)? Does \(R^2\) have units?

Interpreting \(R^2\)

The \(R^2\) of the model of life expectancy and income inequality is 70%. Which of the following is the correct interpretation of this value?

  1. A country’s income inequality correctly predicts 70% of its life expectancy.
  2. 70% of the variability in life expectancy can be explained by income inequality.
  3. 70% of the variability in income inequality can be explained by life expectancy.
  4. 70% of the time a country’s life expectancy can be predicted by its income inequality.

Using R

Augmented data frame

Use the augment() function from the broom package to add columns for predicted values, residuals, and other observation-level model statistics

. . .

life_exp_aug <- augment(life_exp_fit)
life_exp_aug
# A tibble: 140 × 8
   life_exp income_inequality .fitted .resid    .hat .sigma   .cooksd .std.resid
      <dbl>             <dbl>   <dbl>  <dbl>   <dbl>  <dbl>     <dbl>      <dbl>
 1     63.8              28.2    65.8 -1.96  0.0125    4.45 0.00125       -0.444
 2     78.2              12.2    76.9  1.29  0.0116    4.45 0.000498       0.292
 3     59.9              32.4    62.8 -2.93  0.0193    4.44 0.00437       -0.667
 4     76.2              14      75.7  0.542 0.00972   4.45 0.0000739      0.123
 5     74.6               8.6    79.4 -4.82  0.0168    4.43 0.0102        -1.10
 6     83                 8.3    79.6  3.37  0.0173    4.44 0.00515        0.766
 7     81.3               7.4    80.3  1.04  0.0189    4.45 0.000540       0.237
 8     72.5              10.1    78.4 -5.88  0.0144    4.42 0.0130        -1.33
 9     71.8              27.6    66.2  5.62  0.0118    4.43 0.00972        1.28
10     74                 6.5    80.9 -6.89  0.0207    4.41 0.0260        -1.57
# ℹ 130 more rows

Finding RMSE in R

Use the rmse() function from the yardstick package (part of tidymodels)

rmse(life_exp_aug, truth = life_exp, estimate = .fitted)
# A tibble: 1 × 3
  .metric .estimator .estimate
  <chr>   <chr>          <dbl>
1 rmse    standard        4.40

Finding \(R^2\) in R

Use the rsq() function from the yardstick package (part of tidymodels)

rsq(life_exp_aug, truth = life_exp, estimate = .fitted)
# A tibble: 1 × 3
  .metric .estimator .estimate
  <chr>   <chr>          <dbl>
1 rsq     standard       0.700


. . .

Alternatively, use glance() to construct a single row summary of the model fit, including \(R^2\):

glance(life_exp_fit)$r.squared
[1] 0.7003831

Application exercise

📋 sta221-sp26.github.io/ae/ae-01-model-evaluation.html

Complete Part 2.

Recap

  • Used R to conduct exploratory data analysis and fit a model

  • Evaluated models using RMSE and \(R^2\)

  • Used analysis of variance to partition variability in the response variable

Next class

References

Zarulli, Virginia, Elizaveta Sopina, Veronica Toffolutti, and Adam Lenart. 2021. “Health Care System Efficiency and Life Expectancy: A 140-Country Study.” Edited by Srinivas Goli. PLOS ONE 16 (7): e0253450. https://doi.org/10.1371/journal.pone.0253450.
