Ridge regression

Author

Prof. Maria Tackett

Published

Mar 19, 2026

Announcements

  • HW 03 due TODAY at 11:59pm

  • Project exploratory data analysis due TODAY at 11:59pm (on GitHub)

  • Project presentations - in lab March 27

  • Statistics experience due April 2

Submit questions by 5pm today. Form at the end of today’s notes.

AE 05

Topics

  • Ridge regression

Computing set up

# load packages
library(tidyverse)
library(tidymodels)
library(knitr)
library(patchwork)
library(rms)

# set default theme in ggplot2
ggplot2::theme_set(ggplot2::theme_bw())

Data: Age of abalones

The data for this analysis contains measurements for abalones, a type of marine snail. These measurements were collected and analyzed by researchers in Warwick et al. (1994). Click here for the publication.

The 4177 abalones in this study can be reasonably treated as a random sample.

The goal of this analysis is to use characteristics of the abalones to predict their age.

Variables

  • Sex: Male (M), Female (F), Infant (I)
  • Length: Longest shell measurement (in millimeters)
  • Diameter: Measured perpendicular to length (in millimeters)
  • Height : Measured with meat in shell (in millimeters)
  • Whole_Weight: Total weight of abalone (in grams)
  • Age: Age (in years)

Fit a model

age_fit <- lm(Age ~ Sex + Length + Diameter + Height
              + Whole_Weight, data = abalones)

tidy(age_fit) |> kable(digits = 3)
term estimate std.error statistic p.value
(Intercept) 5.643 0.336 16.795 0.000
SexI -1.084 0.119 -9.151 0.000
SexM -0.145 0.097 -1.492 0.136
Length -0.054 0.010 -5.136 0.000
Diameter 0.114 0.013 8.903 0.000
Height 0.094 0.009 10.590 0.000
Whole_Weight -0.001 0.001 -0.642 0.521

Potential issue

vif(age_fit)
        SexI         SexM       Length     Diameter       Height Whole_Weight
    1.950083     1.386901    39.867076    41.170644     3.487132     7.709595


  • What is the potential issue with this model?

  • How does this impact the model results?

Limitations of the least-squares estimator

  • When \((\mathbf{X}^\mathsf{T}\mathbf{X})\) is nearly singular, \(Var(\hat{\boldsymbol{\beta}})\) gets large, and thus we have unstable coefficient estimates . This occurs when

    • There are collinear predictors
    • \(p\) is large relative to \(n\)

  • Additionally, if \(p > n\) , then we cannot find \(\hat{\boldsymbol{\beta}}\)

  • We can use a different estimator that addresses these limitations

Finding the ridge estimator

We find the ridge estimator, \(\hat{\boldsymbol{\beta}}_{ridge}\) by minimizing

\[ \underbrace{(\mathbf{y} - \mathbf{X}\boldsymbol{\beta})^\mathsf{T}(\mathbf{y} - \mathbf{X}\boldsymbol{\beta})}_{\text{SSR}} + \underbrace{\lambda \boldsymbol{\beta}^\mathsf{T}\boldsymbol{\beta}}_{\text{penalty}} \]

where \(\lambda \geq 0\) is the tuning parameter determined by the statistician (more on this later)

. . .

  • Like least-squares, ridge regression seeks to minimize the sum of squares

  • The penalty, \(\lambda\boldsymbol{\beta}^\mathsf{T}\boldsymbol{\beta} = \lambda\sum_{j = 1}^p\beta^2_j\) preferences smaller values of \(\beta_j\), so ridge will shrink the coefficients to 0 (this does not apply to the intercept)

Finding the ridge estimator

We find the ridge estimator, \(\hat{\boldsymbol{\beta}}_{ridge}\) by minimizing

\[ \underbrace{(\mathbf{y} - \mathbf{X}\boldsymbol{\beta})^\mathsf{T}(\mathbf{y} - \mathbf{X}\boldsymbol{\beta})}_{\text{SSR}} + \underbrace{\lambda \boldsymbol{\beta}^\mathsf{T}\boldsymbol{\beta}}_{\text{penalty}} \]


What will happen to \(\hat{\boldsymbol{\beta}}_{ridge}\) as \(\lambda \rightarrow 0\)? What will happen as\(\lambda \rightarrow \infty\) ?

Finding the ridge estimator

The ridge optimization problem can also be written

\[\text{minimize }(\mathbf{y} - \mathbf{X}\boldsymbol{\beta})^\mathsf{T}(\mathbf{y} - \mathbf{X}\boldsymbol{\beta}) \hspace{2mm} \text{subject to} \hspace{2mm} ||\boldsymbol{\beta}||^2_2 \leq c^2\] for some constant \(c\) . Note: \(||\boldsymbol{\beta}||_2 = \sqrt{\sum_{j=1}^p\beta_j^2}\)

. . .

Image source: Introduction to Statistical Learning

  • Red contours are combinations of \(\beta_1\) and \(\beta_2\) that result in same SSR

  • Blue circle is set of possible values of \(\beta_1\) and \(\beta_2\) given the constraint

  • Ridge solution at tangent

See Section 1.5 of Lecture notes on ridge regression for details.

Ridge estimator \(\hat{\boldsymbol{\beta}}_{ridge}\)

The ridge estimator is

\[ \hat{\boldsymbol{\beta}}_{ridge} = (\mathbf{X}^\mathsf{T}\mathbf{X} + \lambda\mathbf{I})^{-1}\mathbf{X}^\mathsf{T}\mathbf{y} \]

(see Exam 01 for derivation)

  • We have addressed the singularity of \((\mathbf{X}^\mathsf{T}\mathbf{X})\) by adding the positive constant to the diagonal

  • What is \(E(\hat{\boldsymbol{\beta}}_{ridge})\)?

  • Is \(\hat{\boldsymbol{\beta}}_{ridge}\) unbiased?

Bias-variance trade-off

  • The penalty \(\lambda\boldsymbol{\beta}^\mathsf{T}\boldsymbol{\beta}\) makes the estimated coefficients in ridge regression less variable than least-squares

  • Therefore, by adding some bias, we are able to reduce variance. This is called the bias-variance trade-off

  • Reducing the variance in coefficients is particularly important when we wish to use a model for prediction on new data


See Section 1.4.2 of Lecture notes on ridge regression for details.

Fitting the model

  • We use standardized values of the predictors when fitting the ridge regression model

  • Why do we use standardized values? Let’s consider Length (in millimeters) in the abalone data

    • Let \(\beta_j\) be the coefficient of Length. When finding the ridge estimates, the penalty for the coefficient of Length is \(\lambda \beta_j^2\) .

    • Suppose instead of Length in millimeters, we use Length in meters. Then the new coefficient is \(1000\beta_j\). Thus, the penalty on the term would be \(\lambda 1000^2\beta_j^2\)

  • Standardizing the quantitative predictors ensures the penalty is fairly applied across all predictors (and not dependent on units)

  • Thus, shrinkage in the \(\beta_j\) reflects the predictor’s importance on the response

Ridge regression in R

Fit ridge regression models using lm.ridge() in the MASS package.

lambda <- 5

ridge_fit <- MASS::lm.ridge(Age ~ Sex + Length + Diameter +
                              Height + Whole_Weight,
                            data = abalones,
                            lambda = lambda)
Tip

MASS a select() function that will cause issues with select() in dplyr. Therefore, use the package::function() syntax instead of loading MASS.

Ridge regression in R

Code
tidy(ridge_fit) |> kable(digits = 3)
lambda GCV term estimate scale
5 0.002 SexI -0.509 0.467
5 0.002 SexM -0.070 0.482
5 0.002 Length -1.139 24.016
5 0.002 Diameter 2.112 19.846
5 0.002 Height 0.784 8.364
5 0.002 Whole_Weight -0.067 98.066

. . .

  • lambda: tuning parameter
  • GCV: Generalized cross validation
  • estimate: ridge coefficient given \(\lambda\)
  • scale: standard deviation of \(x_j\) (used by R to compute standardized predictors)

Try different values of lambda

Code
lambdas <- seq(0, 1000, length = 5000)
ridge_fit <- MASS::lm.ridge(Age ~ Sex + Length + Diameter + Height + Whole_Weight,
                            data = abalones, lambda = lambdas)

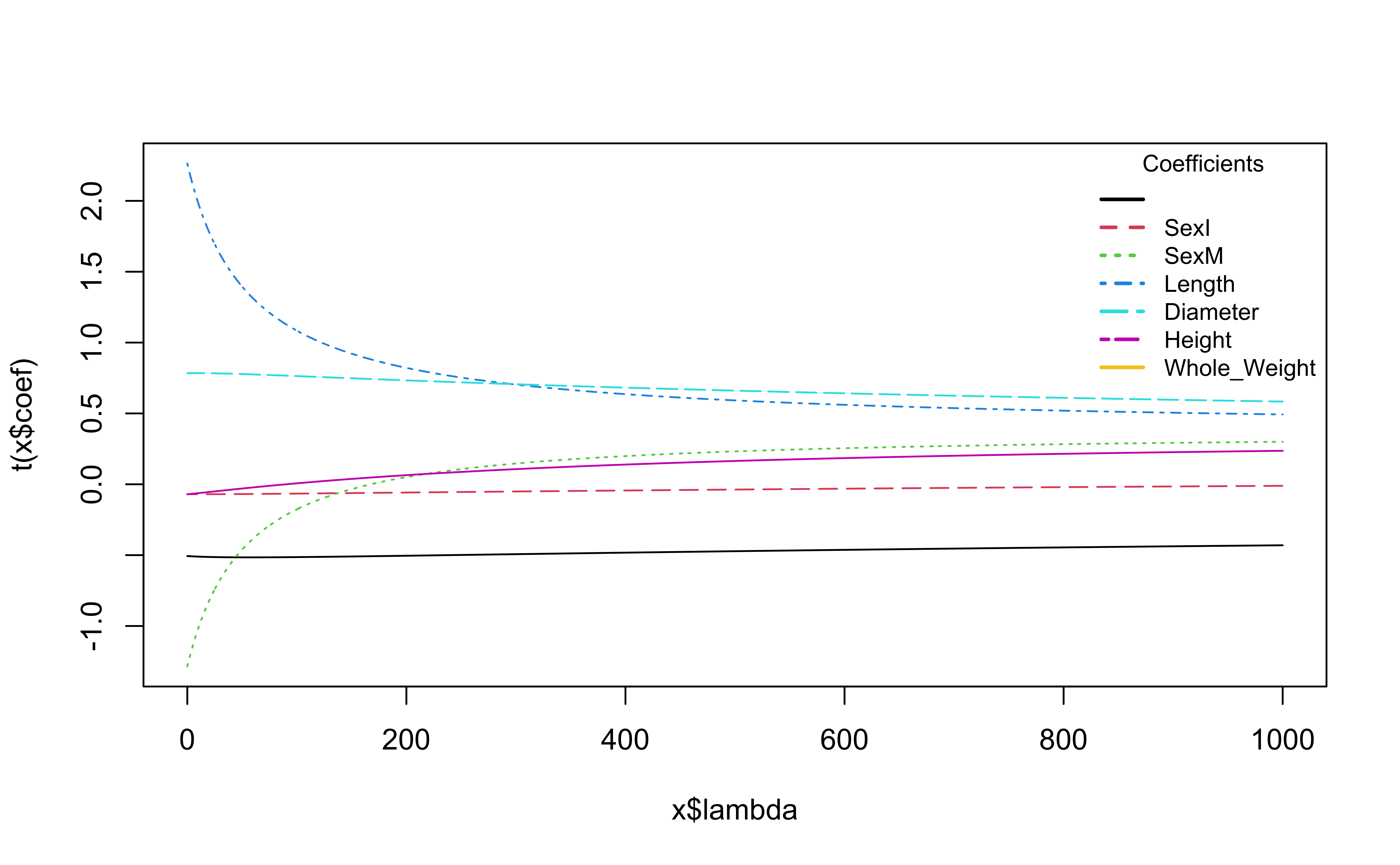

# Plot ridge trace
plot(ridge_fit, main = "Ridge Trace Plot")

coef_names <- colnames(coef(ridge_fit))
coef_names <- coef_names[coef_names != "(Intercept)"]

n <- length(coef_names)
colors <- palette()[1:n]

legend(
  x = "topright",
  legend = coef_names,
  col    = colors,
  lty    = 1:n,
  lwd    = 2,
  title  = "Coefficients",
  bty    = "n",
  cex    = 0.8
)

What is happening to the coefficients as \(\lambda\) increases?

GCV to choose \(\lambda\)

  • We’ll choose \(\lambda\) by considering how well the model predicts on new data

  • Leave one out cross validation (LOOCV) is a method for evaluating model performance on new data, such that one observation is held out as the new data

  • Generalized cross validation (GCV) is a an approximation of LOOCV where we do not have to compute the model \(n\) times for each \(\lambda\)

  • We use the \(\lambda\) with the minimum value of GCV

GCV to choose \(\lambda\)

  • The fitted values from ridge regression can be written as

    \[ \hat{\mathbf{y}} = \mathbf{H}_\lambda\mathbf{y} \]

where \(\mathbf{H}_\lambda\) is the hat matrix for a given value of \(\lambda\) .

  • The average LOOCV for a given \(\lambda\) is

\[ CV(\lambda) = \frac{1}{n}\sum_{i=1}^{n}\Big(\frac{y_i - \hat{y}_i}{1 - h_{ii}}\Big)^2 \]

where \(h_{ii}\) is the \(i^{th}\) diagonal element of \(\mathbf{H}_\lambda\).

GCV to choose \(\lambda\)

  • GCV uses the \(\bar{h}_{ii} = tr(\mathbf{H}_\lambda)/n\) instead of the individual \(h_{ii}\)

    \[ GCV (\lambda) = \frac{1}{n}\sum_{i=1}^{n}\frac{(y_i - \hat{y}_i)^2}{\big(1 - \frac{tr(\mathbf{H}_\lambda)}{n}\big)^2} \]

  • We use the select() function in MASS to find \(\lambda\) that minimizes GCV

    MASS::select(ridge_fit)
    modified HKB estimator is 3.427088
modified L-W estimator is 6.826774
smallest value of GCV  at 1.40028

Refit model with selected \(\lambda\)

lambda <- 1.40028

ridge_fit_2 <- MASS::lm.ridge(Age ~ Sex + Length + Diameter +
                              Height + Whole_Weight,
                            data = abalones,
                            lambda = lambda)
lambda GCV term estimate scale
1.4 0.002 SexI -0.507 0.467
1.4 0.002 SexM -0.070 0.482
1.4 0.002 Length -1.242 24.016
1.4 0.002 Diameter 2.219 19.846
1.4 0.002 Height 0.784 8.364
1.4 0.002 Whole_Weight -0.070 98.066

Further reading

  • Ridge regression is a form of “penalized regression” and is often called “regularization” or a “shrinkage method”. Other such methods are LASSO and best subset selection.

  • One (potential) limitation of ridge regression is that it keeps all predictors in the models. Methods such as LASSO and best subset selection address this.

  • Resources for further reading:
